Tested Deployments
Abstact
This guide provides the tested deployments of Ansible for OpenShift Virtualization Migration
Overview
The Ansible for OpenShift Virtualization Migration team tested a defined set of deployment options. These deployments are tested against expected production deployments. It is possible to run Ansible for OpenShift Virtualization Migration using different infrastructure topologies.

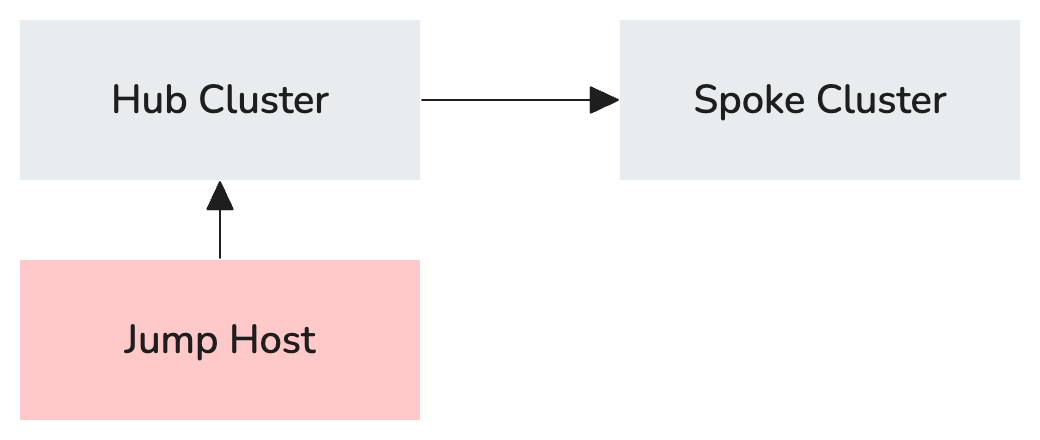

Multi-cluster Deployment
Multi-cluster deployments consist of a central "hub" cluster and one or more "spoke" clusters.
Example Inventory File
---
# OpenShift Virtualization Migration Ansible Inventory
all:
vars:
# Baseline Variables
aap_execution_environment: OpenShift Virtualization Migration
aap_execution_environment_image: quay.io/redhat-cop/openshift-virtualization-migration-ee:latest
aap_project: OpenShift Virtualization Migration
aap_org_name: OpenShift Virtualization Migration
aap_namespace: virtualization-migration
aap_version: 2.6
aap_channel: stable-2.6
aap_instance_name: 'aap'
aap_validate_certs: false
controller_validate_certs: false
# If secure_logging is set to 'true', Secrets may be displayed in logs.
# secure_logging: false
## Operators to deploy on the OpenShift Hub Cluster
# aap_seed_operator_management_hub: []
## Operators to deploy on the OpenShift Spoke Clusters
# aap_seed_operator_management_spoke: []
# Red Hat account login used to attach AAP subscription
rh_username: changeme
rh_password: changeme
# Container registry vars
# This is the location of the hosted execution environment
container_host: changeme # e.g. 'quay.io/example'
container_username: changeme
container_password: changeme
container_verify_ssl: false
# Git Variables
## Configure and uncomment as needed
## AAP Project Configuration (repository URL and branch)
aap_project_repo: changeme
aap_project_branch: main
## Git Credentials
git_username: changeme
git_password: changeme
# git_ssh_private_key:
# git_ssh_key_passphrase:
# Automation Hub Variables
automation_hub_certified_url: https://cloud.redhat.com/api/automation-hub/content/published/
automation_hub_certified_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_certified_token: changeme
automation_hub_validated_url: https://cloud.redhat.com/api/automation-hub/content/validated/
automation_hub_validated_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_validated_token: changeme
# Migration Factory Hub cluster to configure
migration_hub:
hosts:
# Friendly name of the Hub
hub.cluster.example.com:
# Host Variables
# OpenShift Variables for the Hub
# You must only define one set of openshift credentials. EITHER
# openshift_username + openshift_password; OR openshift_temporary_api_key OR openshift_api_key
openshift_host: changeme # e.g. 'https://api.example.com:6443'
# openshift_temporary_api_key: # This is a 24 hour API key generated when you select your login
# in the OpenShift UI or use `oc login`. If a this var is not provided, it is expected that you
# provide either openshift_username + openshift_password (used to generate a temporary api key)
# or openshift_api_key with a permanent SA API key
# openshift_api_key: # This is a permanent Service Account API key. If you don't have a Service
# Account, one can be generated if you provide a tempoarary api key via openshift_temporary_api_key,
# or if you provide openshift_username + openshift_password to generate a temporary api key for you.
# openshift_username: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
# openshift_password: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
openshift_verify_ssl: false
# Migration Factory Hub spokes to configure
migration_spoke:
hosts:
# Friendly name of the Spoke
spoke.cluster.example.com:
# Host Variables
# OpenShift Variables for the Spoke
# You must only define one set of openshift credentials. EITHER openshift_username + openshift_password;
# OR openshift_temporary_api_key OR openshift_api_key
openshift_host: changeme # e.g. 'https://api.example.com:6443'
# openshift_temporary_api_key: # This is a 24 hour API key generated when you select your login in the
# OpenShift UI or use `oc login`. If a this var is not provided, it is expected that you provide either
# openshift_username + openshift_password (used to generate a temporary api key) or openshift_api_key with
# a permanent SA API key
# openshift_api_key: # This is a permanent Service Account API key. If you don't have a Service Account,
# one can be generated if you provide a tempoarary api key via openshift_temporary_api_key, or if you provide
# openshift_username + openshift_password to generate a temporary api key for you.
# openshift_username: # If no openshift_temporary_api_key or openshift_api_key are provided, then
# openshift_username + openshift_password can generate one for you
# openshift_password: # If no openshift_temporary_api_key or openshift_api_key are provided, then
# openshift_username + openshift_password can generate one for you
openshift_verify_ssl: false
# List of migration targets to configure on this specific spoke cluster
configured_migration_targets:
- vmware-target-1
# Variables to apply to all configured job templates
aap_job_template_extra_vars:
## Group Variables to apply to all spokes
vars:
migration_targets:
## Data Structure of Migration Targets
# - name: vmware-target-1 # Required
# type: vmware # Must be `vmware`
# host: vcenter.example.com
# sdkEndpoint: /sdk # Defaults to this value if not provided
# username: <username>
# password: <password>
# certificate: |
# <certificate>
# insecureSkipTlsVerify: <value> # defaults to `true` if not specified
# credentialsSecretRef: <reference> # Namespaced name (<namespace>/<name>) or just <name> if in
# <mtv_namespace> containing MTV provider details
# nmstate: <configurations applied as merged extra variables to the job template to configure networking>
# mapping: <configurations applied as merged extra variables to the job template to configure MTV mapping
# storage and networking>
## Example Migration Target (uncomment to use as a baseline)
# - name: vmware-2w7dj
# type: vmware
# host: vcsrs00-vc.infra.demo.redhat.com
# username: ocpvirt-2w7dj-user1@infra
# password: r9F37-f6MMepF7
# vddk:
# image: quay.io/redhat-cop/openshift-virtualization-migration-vddk:latest
# username: "{{ container_username }}"
# password: "{{ container_password }}"
# sdkEndpoint: /sdk
# insecureSkipTlsVerify: true
# mapping:
# create: true

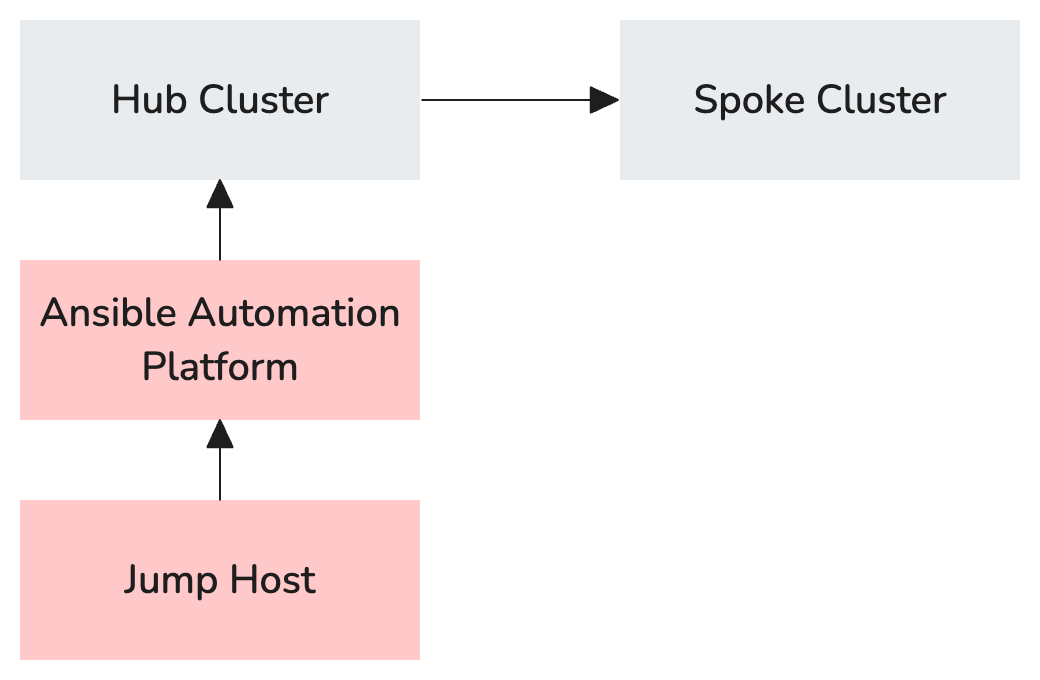

...Multi-cluster with External AAP
Multi-cluster with External AAP deployments have the same "hub" and "spoke" clusters as Multi-cluster Deployment. Instead of deploying AAP on the "hub" cluster, a pre-exsiting APP installation is used.
Example Inventory File
---
# OpenShift Virtualization Migration Ansible Inventory
all:
vars:
# Baseline Variables
aap_execution_environment: OpenShift Virtualization Migration
aap_execution_environment_image: quay.io/redhat-cop/openshift-virtualization-migration-ee:latest
aap_project: OpenShift Virtualization Migration
aap_org_name: OpenShift Virtualization Migration
aap_namespace: virtualization-migration
aap_version: 2.6
aap_channel: stable-2.6
aap_instance_name: 'aap'
aap_validate_certs: false
controller_validate_certs: false
# If secure_logging is set to 'true', Secrets may be displayed in logs.
# secure_logging: false
## Operators to deploy on the OpenShift Hub Cluster
# aap_seed_operator_management_hub: []
## Operators to deploy on the OpenShift Spoke Clusters
# aap_seed_operator_management_spoke: []
# Red Hat account login used to attach AAP subscription
rh_username: changeme
rh_password: changeme
# Container registry vars
# This is the location of the hosted execution environment
container_host: changeme # e.g. 'quay.io/example'
container_username: changeme
container_password: changeme
container_verify_ssl: false
# Git Variables
## Configure and uncomment as needed
## AAP Project Configuration (repository URL and branch)
aap_project_repo: changeme
aap_project_branch: main
## Git Credentials
git_username: changeme
git_password: changeme
# git_ssh_private_key:
# git_ssh_key_passphrase:
# Automation Hub Variables
automation_hub_certified_url: https://cloud.redhat.com/api/automation-hub/content/published/
automation_hub_certified_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_certified_token: changeme
automation_hub_validated_url: https://cloud.redhat.com/api/automation-hub/content/validated/
automation_hub_validated_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_validated_token: changeme
# OpenShift Virtualization Migration Inventory Groups
migration_aap:
hosts:
aap_host:
aap_username: changeme
aap_password: changeme
aap_token: token
aap_hostname: aap.example.com
aap_validate_certs: true
# Migration Factory Hub cluster to configure
migration_hub:
hosts:
# Friendly name of the Hub
hub.cluster.example.com:
# Host Variables
# OpenShift Variables for the Hub
# You must only define one set of openshift credentials. EITHER
# openshift_username + openshift_password; OR openshift_temporary_api_key OR openshift_api_key
openshift_host: changeme # e.g. 'https://api.example.com:6443'
# openshift_temporary_api_key: # This is a 24 hour API key generated when you select your login
# in the OpenShift UI or use `oc login`. If a this var is not provided, it is expected that you
# provide either openshift_username + openshift_password (used to generate a temporary api key)
# or openshift_api_key with a permanent SA API key
# openshift_api_key: # This is a permanent Service Account API key. If you don't have a Service
# Account, one can be generated if you provide a tempoarary api key via openshift_temporary_api_key,
# or if you provide openshift_username + openshift_password to generate a temporary api key for you.
# openshift_username: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
# openshift_password: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
openshift_verify_ssl: false
install_aap: false
# Migration Factory Hub spokes to configure
migration_spoke:
hosts:
# Friendly name of the Spoke
spoke.cluster.example.com:
# Host Variables
# OpenShift Variables for the Spoke
# You must only define one set of openshift credentials. EITHER openshift_username + openshift_password;
# OR openshift_temporary_api_key OR openshift_api_key
openshift_host: changeme # e.g. 'https://api.example.com:6443'
# openshift_temporary_api_key: # This is a 24 hour API key generated when you select your login in the
# OpenShift UI or use `oc login`. If a this var is not provided, it is expected that you provide either
# openshift_username + openshift_password (used to generate a temporary api key) or openshift_api_key with
# a permanent SA API key
# openshift_api_key: # This is a permanent Service Account API key. If you don't have a Service Account,
# one can be generated if you provide a tempoarary api key via openshift_temporary_api_key, or if you provide
# openshift_username + openshift_password to generate a temporary api key for you.
# openshift_username: # If no openshift_temporary_api_key or openshift_api_key are provided, then
# openshift_username + openshift_password can generate one for you
# openshift_password: # If no openshift_temporary_api_key or openshift_api_key are provided, then
# openshift_username + openshift_password can generate one for you
openshift_verify_ssl: false
# List of migration targets to configure on this specific spoke cluster
configured_migration_targets:
- vmware-target-1
# Variables to apply to all configured job templates
aap_job_template_extra_vars:
## Group Variables to apply to all spokes
vars:
migration_targets:
## Data Structure of Migration Targets
# - name: vmware-target-1 # Required
# type: vmware # Must be `vmware`
# host: vcenter.example.com
# sdkEndpoint: /sdk # Defaults to this value if not provided
# username: <username>
# password: <password>
# certificate: |
# <certificate>
# insecureSkipTlsVerify: <value> # defaults to `true` if not specified
# credentialsSecretRef: <reference> # Namespaced name (<namespace>/<name>) or just <name> if in
# <mtv_namespace> containing MTV provider details
# nmstate: <configurations applied as merged extra variables to the job template to configure networking>
# mapping: <configurations applied as merged extra variables to the job template to configure MTV mapping
# storage and networking>
## Example Migration Target (uncomment to use as a baseline)
# - name: vmware-2w7dj
# type: vmware
# host: vcsrs00-vc.infra.demo.redhat.com
# username: ocpvirt-2w7dj-user1@infra
# password: r9F37-f6MMepF7
# vddk:
# image: quay.io/redhat-cop/openshift-virtualization-migration-vddk:latest
# username: "{{ container_username }}"
# password: "{{ container_password }}"
# sdkEndpoint: /sdk
# insecureSkipTlsVerify: true
# mapping:
# create: true

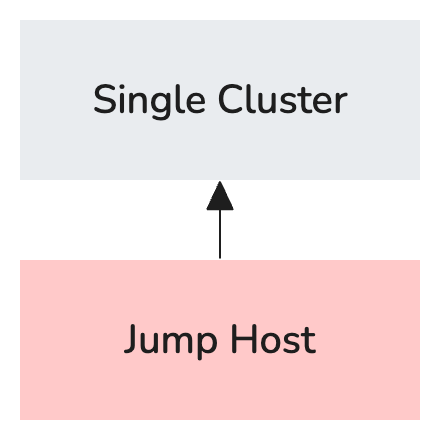

...Single Cluster
A single cluster deployment should only be used for testing purposes and is not recommended to be used in production.
Example Inventory File
---
# OpenShift Virtualization Migration Ansible Inventory
all:
vars:
# Baseline Variables
aap_execution_environment: OpenShift Virtualization Migration
aap_execution_environment_image: quay.io/redhat-cop/openshift-virtualization-migration-ee:latest
aap_project: OpenShift Virtualization Migration
aap_org_name: OpenShift Virtualization Migration
aap_namespace: virtualization-migration
aap_version: 2.6
aap_channel: stable-2.6
aap_instance_name: 'aap'
aap_validate_certs: false
controller_validate_certs: false
# If secure_logging is set to 'true', Secrets may be displayed in logs.
# secure_logging: false
## Operators to deploy on the OpenShift Hub Cluster
# aap_seed_operator_management_hub: []
## Operators to deploy on the OpenShift Spoke Clusters
# aap_seed_operator_management_spoke: []
# Red Hat account login used to attach AAP subscription
rh_username: changeme
rh_password: changeme
# Container registry vars
# This is the location of the hosted execution environment
container_host: changeme # e.g. 'quay.io/example'
container_username: changeme
container_password: changeme
container_verify_ssl: false
# Git Variables
## Configure and uncomment as needed
## AAP Project Configuration (repository URL and branch)
aap_project_repo: changeme
aap_project_branch: main
## Git Credentials
git_username: changeme
git_password: changeme
# git_ssh_private_key:
# git_ssh_key_passphrase:
# Automation Hub Variables
automation_hub_certified_url: https://cloud.redhat.com/api/automation-hub/content/published/
automation_hub_certified_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_certified_token: changeme
automation_hub_validated_url: https://cloud.redhat.com/api/automation-hub/content/validated/
automation_hub_validated_auth_url: https://sso.redhat.com/auth/realms/redhat-external/protocol/openid-connect/token
automation_hub_validated_token: changeme
# Migration Factory Hub cluster to configure
migration_hub:
hosts:
# Friendly name of the Hub
single.cluster.example.com:
# Host Variables
# OpenShift Variables for the Hub
# You must only define one set of openshift credentials. EITHER
# openshift_username + openshift_password; OR openshift_temporary_api_key OR openshift_api_key
openshift_host: changeme # e.g. 'https://api.example.com:6443'
# openshift_temporary_api_key: # This is a 24 hour API key generated when you select your login
# in the OpenShift UI or use `oc login`. If a this var is not provided, it is expected that you
# provide either openshift_username + openshift_password (used to generate a temporary api key)
# or openshift_api_key with a permanent SA API key
# openshift_api_key: # This is a permanent Service Account API key. If you don't have a Service
# Account, one can be generated if you provide a tempoarary api key via openshift_temporary_api_key,
# or if you provide openshift_username + openshift_password to generate a temporary api key for you.
# openshift_username: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
# openshift_password: # If no openshift_temporary_api_key or openshift_api_key are provided,
# then openshift_username + openshift_password can generate one for you
openshift_verify_ssl: false
# Migration Factory Hub spokes to configure
migration_spoke:
hosts:
# Friendly name of the Spoke
single.cluster.example.com:
# List of migration targets to configure on this specific spoke cluster
configured_migration_targets:
- vmware-target-1
# Variables to apply to all configured job templates
aap_job_template_extra_vars:
## Group Variables to apply to all spokes
vars:
migration_targets:
## Data Structure of Migration Targets
# - name: vmware-target-1 # Required
# type: vmware # Must be `vmware`
# host: vcenter.example.com
# sdkEndpoint: /sdk # Defaults to this value if not provided
# username: <username>
# password: <password>
# certificate: |
# <certificate>
# insecureSkipTlsVerify: <value> # defaults to `true` if not specified
# credentialsSecretRef: <reference> # Namespaced name (<namespace>/<name>) or just <name> if in
# <mtv_namespace> containing MTV provider details
# nmstate: <configurations applied as merged extra variables to the job template to configure networking>
# mapping: <configurations applied as merged extra variables to the job template to configure MTV mapping
# storage and networking>
## Example Migration Target (uncomment to use as a baseline)
# - name: vmware-2w7dj
# type: vmware
# host: vcsrs00-vc.infra.demo.redhat.com
# username: ocpvirt-2w7dj-user1@infra
# password: r9F37-f6MMepF7
# vddk:
# image: quay.io/redhat-cop/openshift-virtualization-migration-vddk:latest
# username: "{{ container_username }}"
# password: "{{ container_password }}"
# sdkEndpoint: /sdk
# insecureSkipTlsVerify: true
# mapping:
# create: true
...
